KIT PRO

Smart Solution

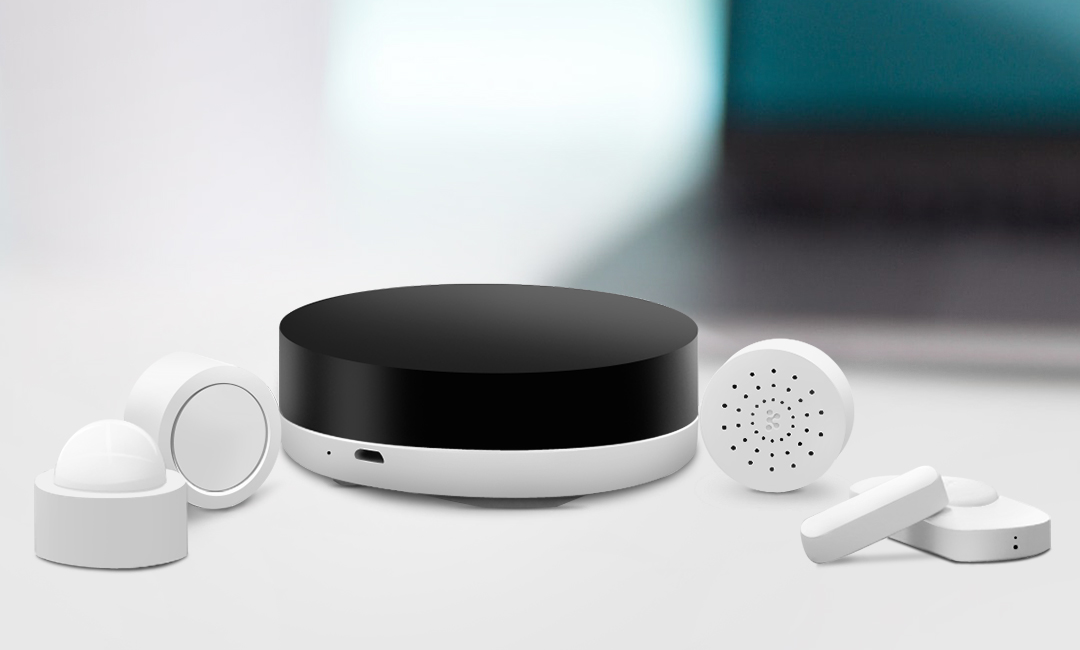

Kit Pro is a smart solution kit including 1 hub and 4 sensors which supports Zigbee and Wi-Fi dual wireless communication protocols.

For the sake of "lazy" life

Simple but powerful system.Can’t wait to see how Kit pro serves you?
  • IR universal remote

  • Environmental monitoring

  • Motion detection

  • APP message pushing

  • Multi-device interaction

  • Custom function button

Brand new Smart K 3.0 APP

Simple interface with device configuration,mode setting,function control,software upgrade,easy to understand and get started.

Kit Pro Smart Solution

Smart Gateway Hub

As the center of the system, the built-in infrared remote control function can turn your mobile phone into a home appliance remote control. When the sensor is triggered, the host will sound an alarm and push message to you.

Kit Pro Smart Solution

Multi-function Button

A movable accessary with customized functions such as on/off and can be used as a trigger condition to link other devices,such as: Dis-alarm by a simple press

Kit Pro Smart Solution

Temp-Humidity Sensor

Monitor the temperature & humidity data of the living environment.You can check the current temperature and humidity in the APP,the data also can be used as the trigger condition for intelligent interaction.For example,if the temperature is too high,the air conditioner will be automatically turned on.

*indoor only

Kit Pro Smart Solution

Motion Sensor

When someone passed by in the sensing area,it can be used as a security trigger to push alarm message or as a trigger for other interactions.

*indoor only

Kit Pro Smart Solution

Entry Sensor

When the door or window changes state,kit pro will immediately send you a message or use it as a trigger for other interactions.

  • Multi-function Button
  • Temp-Humidity Sensor
  • Motion Sensor
  • Entry Sensor
  • All in one IR universal remote

    Kit Pro Smart Gateway Hub has IR universal remote function, you can control the set-top box, TV and other infrared remote control appliances by using the cloud IR database,no longer to worry about the lost of the traditional remote or out of power.
  • Smart interaction to make you comfortable

    you can view the temperature and humidity of the current environment in real time.By setting interaction,Kit Pro can automatically turn on the air conditioner and humidifier in the home to balance the temperature and humidity,so that you can enjoy comfort without having to manually open it.
  • One-button set alarm

    Doors and windows are illegally opened/Illegal intrusion (door sensor is triggered) The Hub alarm (in Alarm mode,door open,hub alarm),camera capture and upload video,image data to cloud.
  • Automation

    Along with other konke smart accessories to create various out of your unlimited imagination

    Smart Gateway Hub

    Specifications
    Dimensions: 90*90*35(mm)
    Working Temp: 0℃ to +40℃
    Power Supply: DC 5V/ 2A
    Power Port: Micro USB
    IR Angle: 360°. Reflective environment
    IR Distance: Non-reflective open space≧10m
    Wifi Standard: IEEE 802.11 b/g/n 2.4GHz
    Wifi Max Power: <20dBm
    Communication Protocol:IEEE 802.15.4 HA3.0
    Zigbee Max Power:19dBm
    Number Of Node Connections: 32
    Receiving Sensitivity: <-98dBm
    Certification: SRRC、FCC、CE、RoHS

    Multi-function Button

    Specifications
    Dimensions: 30.6*15.7(mm)
    Working Temp: 0℃ to +40℃
    Battery: CR 2450
    Battery Size: 24.5mm*5mm
    Communication Protocol: IEEE 802.15.4 Zigbee 3.0
    Max Power: 10dBm
    Receiving Sensitivity: <-98dBm
    Certification: FCC

    Temp-Humidity Sensor

    Specifications
    Dimensions: 30.6*15.7(mm)
    Working Temp: 0℃ to +40℃
    Temperature Detection Accuracy: ±0.5℃
    Relative Humidity Detection Accuracy: ±5%
    Battery: CR 2450
    Battery Parameter: 3V 540mAh
    Battery Size: 24.5mm*5mm
    Communication Protocol: IEEE 802.15.4 Zigbee 3.0
    Zigbee Power: 10dBm
    Receiving Sensitivity: <-98dBm
    Certification: FCC、IC

    Motion Sensor

    Specifications
    Dimensions: 31*27.5(mm)
    Working Temp: 0℃ to +40℃
    Detection Range: 4m~6m
    Detection Angle: 120°~140°
    Battery: CR 2450
    Battery Size: 24.5mm*5mm
    Communication Protocol: IEEE 802.15.4 Zigbee 3.0
    Max Power: 10dBm
    Receiving Sensitivity: <-98dBm
    Certification: FCC

    Entry Sensor

    Specifications
    Dimensions: 45*24*11.5(mm)
    Working Temp: 0℃ to +40℃
    Detection Range: ≤ 20mm
    Battery: CR 1632
    Battery Size: 16mm*32mm
    Communication Protocol: IEEE 802.15.4 Zigbee 3.0
    Max Power: 10dBm
    Receiving Sensitivity: <-98dBm
    Certification: FCC
